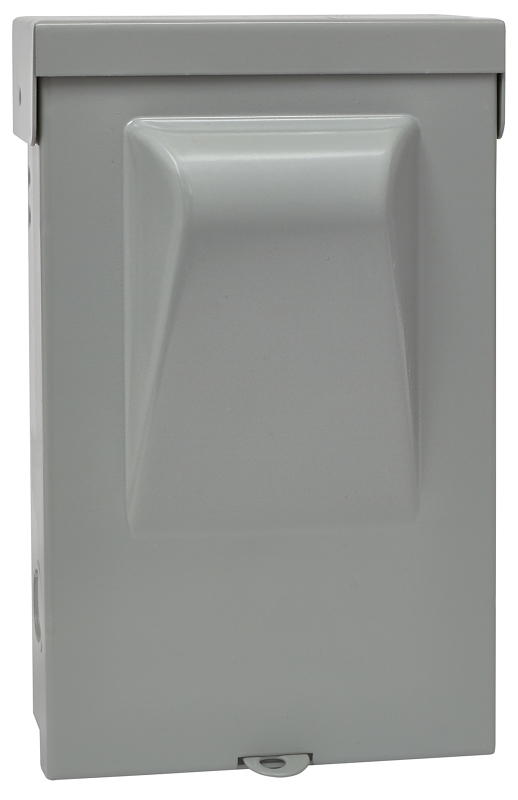

Eaton 3GAC222NF Disconnect Switch, 60 A, 120/240 VAC, Gray

Eaton

Eaton 3GAC222NF Disconnect Switch, 60 A, 120/240 VAC, Gray

$19.95$19.95
Eaton 3GAC222NF Disconnect Switch, 60 A, 120/240 VAC, Gray
  • Color: Gray
  • Current Rating: 60 A
  • Enclosure Material: Steel
  • Fused: No
  • HP Rating: 3 10 hp
  • Model #: 3GAC222NF
  • UPC #: 622588052761
  • SKU: 3007879

Your shopping list will be used for pickup in-store

Product Details

Eaton Disconnect Switch, Air Conditioning, Pullout, 120/240 VAC, 60 A, Number of Phases: 1, 3, 10 hp, Number of Poles: 2, Fused: No, Short Circuit Rating: 10 kA, Number of Wires: 2, NEMA Rating: NEMA 3R, Enclosure Material: Steel, Gray, 8.79 in L, 5.4 in W, 3.76 in H

Key Features

  • ON/OFF control provided by pullout handle
  • Pullout handle can be conveniently stored in the compartment in the off position, helping to prevent the handle from being misplaced
  • Protective shield cannot be removed until the pullout is removed, disconnecting the power
  • Break-resistant "snap-in cover" eliminates need for screws
  • 10 kA short circuit withstand at 240 V max when protected by 60 A max fuse or circuit breaker

Item Specifications

ColorGray
Current Rating60 A
Enclosure MaterialSteel
FusedNo
HP Rating3 10 hp
Length8.79
Nema RatingNEMA 3R
Number of Phases1
Number of Poles2
Number Of Wires2
Short Circuit Rating10 kA
TypeAir Conditioning Pullout
Voltage Rating120/240 VAC
Width5.4
MORE DETAILS:
  • Application: For indoor/outdoor applications
