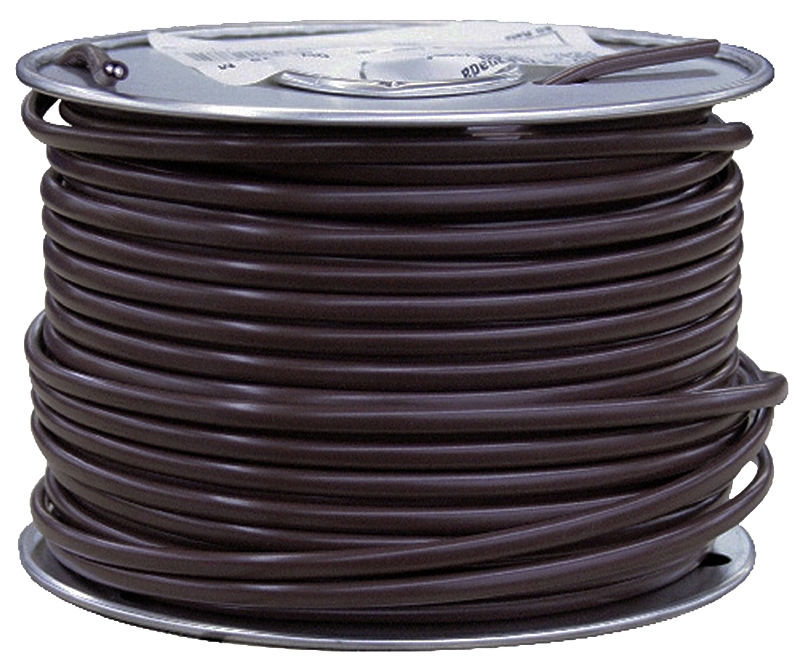

Southwire 55765875 Series Thermostat Wire, Brown Sheath, 18 AWG Wire, 2-Conductor, 75 m L, Copper Conductor, 300 V

Southwire

Southwire 55765875 Series Thermostat Wire, Brown Sheath, 18 AWG Wire, 2-Conductor, 75 m L, Copper Conductor, 300 V

Southwire 55765875 Series Thermostat Wire, Brown Sheath, 18 AWG Wire, 2-Conductor, 75 m L, Copper Conductor, 300 V
  • Conductor Insulation: PVC
  • Conductor Material: Copper
  • Length: 75
  • Number of Conductors: 2
  • Operating Temperature: -20 to 105 deg C
  • Model #: 55765875
  • UPC #: 032886086335
  • SKU: 7295470

Your shopping list will be used for pickup in-store

Product Details

Southwire® FAS/LVT is manufactured with solid bare copper conductor and color-coded PVC insulation. Conductors are twisted unless noted. A rugged flame-retardant flexible PVC jacket is extruded over the cable core. A ripcord is included under the jacket for jobsite jacket strip-back.

Key Features

  • High-grade PVC flame-retardant insulation and jacket materials have excellent color definition and workability
  • Ripcord under jacket for jobsite ease of use

Item Specifications

Conductor InsulationPVC
Conductor MaterialCopper
Length75
Number of Conductors2
Operating Temperature-20 to 105 deg C
Sheath ColorBrown
Stranded/SolidSolid
TypeFlat
Voltage Rating300 V
Wire Size18 AWG
MORE DETAILS:
  • Application: For connecting fire alarm signaling (FAS) devices within a fire protective signaling system, low-voltage thermostat in HVAC systems
