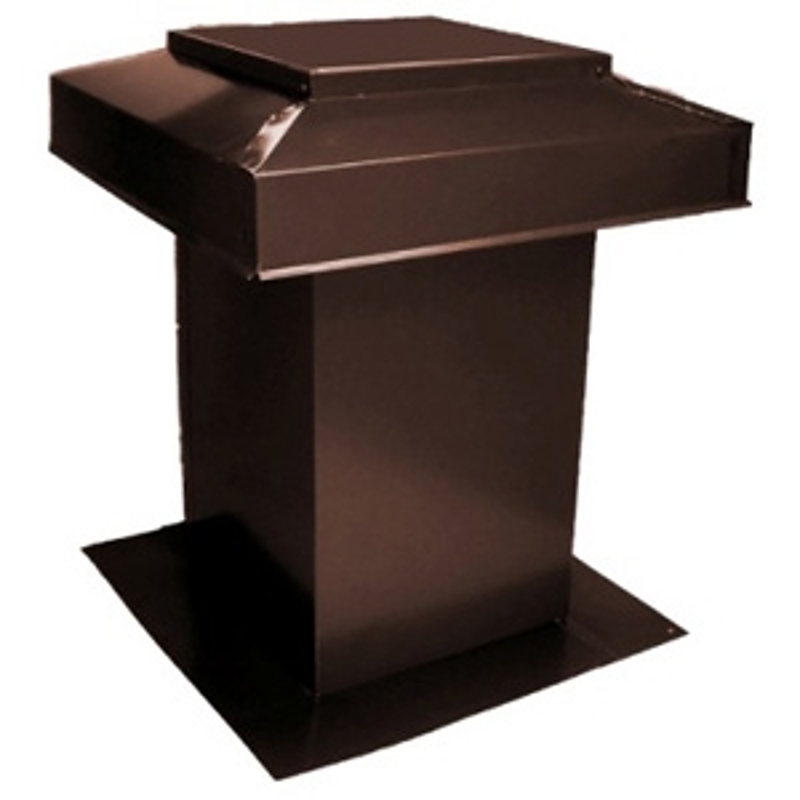

Ventilation Maximum 102-12-MB-N Flat Roof Ventilator, 19-3/4 in OAW, 96 sq-in Net Free Ventilating Area, Steel, Black

Ventilation Maximum

Base Dimensions: 24-1/4 in H
Color: Black
Finish: Powdered
Material: Steel
Net Free Ventilating Area: 96 sq-in
Model #: 102-12-MB-N
UPC #: 772820112958
SKU: 7108947

Your shopping list will be used for pickup in-store

Product Details

Unlike the turbine, the maximum ventilators are CSA approved and do not require to rotate to prevent water or snow infiltrations. Its unique storm proof system prevents infiltrations while at the same time capturing the wind flow from all directions and at wind velocities as low as 6 km/hr. With this combination of technology, wind and pressure differentials, a "chimney or, vacuum effect" results in drawing the stale air and moisture out, thus preventing moisture and heat build-up within the attic space. All in one, no need of a wood curb, this model has been designed to allow you to install the roofing membrane onto the base flashing the same way you would a wood curb. We have made an allowance for the membrane so that the neck of the ventilator will go over both the flashing and the membrane.

Key Features

100 to 150 sq-ft ventilation area
Unique precision engineered deflector system
Interior and exterior powder coated polyester baked paint with UV protection
Flat base, insulated interior flashing
Tested extraction rate 134 cfm
Built-in galvanized wire mesh screen

Item Specifications

Base Dimensions	24-1/4 in H
Color	Black
Finish	Powdered

Material	Steel
Net Free Ventilating Area	96 sq-in
Overall Width	19-3/4 in

MORE DETAILS:

Application: For modified membrane applications
Warranty: Limited Lifetime

WARNING: California Residents see Prop 65 Warnings
