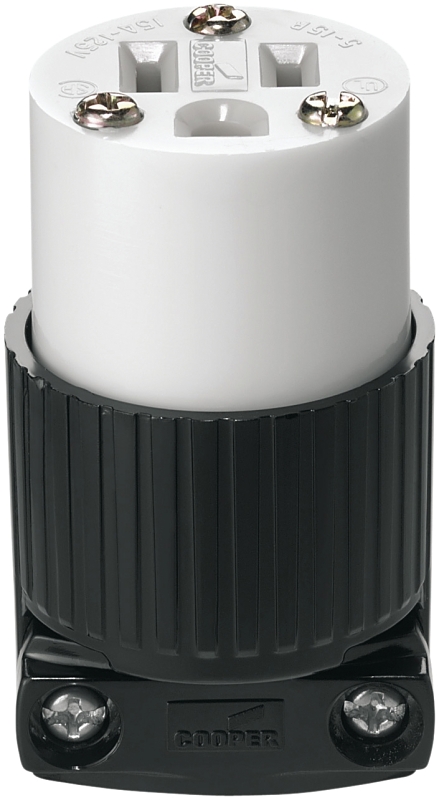

COOPER INDUSTRIES WD5269 Industrial Grade Electrical Connector, 125 VAC, 15 A, 3, 13.14 in L x 5.46 in W x 3.85 in D

EATON WIRING DEVICES

COOPER INDUSTRIES WD5269 Industrial Grade Electrical Connector, 125 VAC, 15 A, 3, 13.14 in L x 5.46 in W x 3.85 in D

COOPER INDUSTRIES WD5269 Industrial Grade Electrical Connector, 125 VAC, 15 A, 3, 13.14 in L x 5.46 in W x 3.85 in D
  • Amperage Rating: 15 A
  • Grounding Style: Grounded
  • Material: Thermoplastic/Nylon/Solid Brass
  • Nema Rating: NEMA 570/2B5-15
  • Number of Poles: 2
  • Model #: WD5269
  • UPC #: 032664392405
  • SKU: 9235979

Your shopping list will be used for pickup in-store

Product Details

Industrial grade. High impact-resistant thermoplastic housings with easy-grip grooves. Plated steel assembly screws are speed-threaded and captive, reducing installation time. Terminals in individual chambers to positively insulate conductors. Clearly marked rating, NEMA configuration and standard compliances (third-party listing) on face of device. Color-coded clamps identify amperage: blue=15 amp. Terminal screws backed out; ready for wiring. Combination slot/Phillips head terminal, assembly, and clamping screws. Meets all 498 requirements. 15 amp, 125 volt. UL Listed. NEMA 5-15.

Key Features

  • High impact-resistant thermoplastic housings with easy grip grooves and plug has a plated steel assembly screws are speed-threaded and captive, reducing installation time
  • Solid brass plug blades are firmly embedded in body
  • Terminals in individual chambers to positively insulate conductors
  • Clearly marked rating nema configuration and standard compliances (third-party listing) on face of device
  • Color-coded clamps identify amperage
  • Terminal screws backed out, ready for wiring
  • Combination slot/Phillips head terminal, assembly and clamping screws
  • Neoprene gasket seals around cord for added terminal protection from external elements
  • 025 to 069 in dia cord

Item Specifications

Amperage Rating15 A
Grounding StyleGrounded
MaterialThermoplastic/Nylon/Solid Brass
Nema RatingNEMA 570/2B5-15
Number of Poles2
Number Of Wires3
Overall Depth3.85 in
Overall Length13.14
Overall Width5.46
StandardsUL Listed
TypeIndustrial Grade
Voltage Rating125 VAC
